Omron PLC Motion and position control units

Omron Motion and Position Control Module: These modules are specifically designed for the combined use of servo and stepper motors and rotary encoders, ie encoders, for the most accurate motion control possible. Multi-axis synchronous drives can be performed with the help of positioning modules.

Click HERE for the full product range and detailed product description

Our expansion modules are compatible with CJ2H, CJ2M, NJ1, NJ3 and NJ5 CPUs, the expansion modules for NX CPUs can be purchased in a separate menu!

17product
Modular PLC expansion module Omron CJ1W-CT021

Modular PLC expansion module Omron CJ1W-CT021

CJ1W-CT021
Channel / axis: 2
Type: 500 kHz counter
Signal type: 24 V, line driver
Module classification: Special I / O module
Connector type: 1 x Fujitsu ( 40 points)
Description: 2 configurable digital inputs + output
Expected delivery:
Inquire please!
Nettó: 804.29 €
Modular PLC expansion module Omron CJ1W-CTL41-E

Modular PLC expansion module Omron CJ1W-CTL41-E

CJ1W-CTL41-E
Channel / axis: 4
Type: 100 kHz counter
Signal type: Line drive via 24 V connector
Module classification: Special I / O module
Connector type: 1 x MIL (40 pts)
Description: Targets can send an interrupt to the CPU
Expected delivery:
Inquire please!
Nettó: 632.49 €

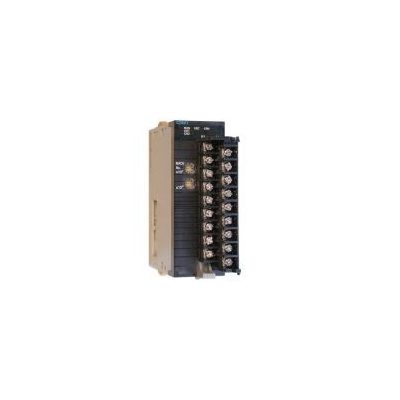

Modular PLC expansion module Omron CJ1W-CTS21-E

Modular PLC expansion module Omron CJ1W-CTS21-E

CJ1W-CTS21-E
Channel / axis: 2
Type: SSI inputs (absolute position data)
Signal type: Synchronous serial protocol
Module classification: Special I / O module
Connector type: M3 screw
Description: Data rate, encoding type, data length, etc. adjustable per channel
Expected delivery:
Inquire please!
Nettó: 684.09 €

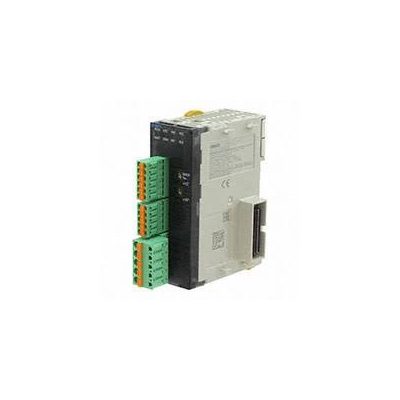

Modular PLC expansion module Omron CJ1W-DCM11-E

Modular PLC expansion module Omron CJ1W-DCM11-E

CJ1W-DCM11-E
Channel / shaft: 1
Type: DC motor control modules
Signal type: PWM (24 V / 4 A)
Module classification: Special I / O module
Connector type: 3 x quick connect
Description: 4 configurable digital inputs + 50 kHz counter input
Expected delivery:
Inquire please!
Nettó: 562.75 €

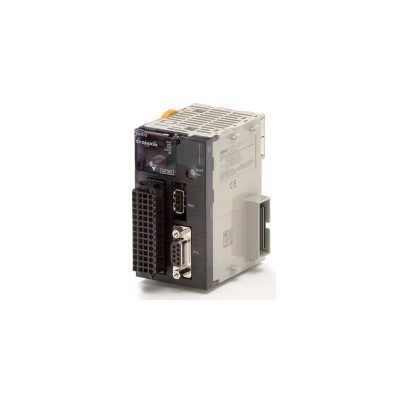

Modular PLC expansion module Omron CJ1W-MCH72

Modular PLC expansion module Omron CJ1W-MCH72

CJ1W-MCH72
Modular PLC expansion module
Channel / axis: 30
Type: Advanced drive control module
Signal type: MECHATROLINK-II, encoder I / O, digital I / O
Module classification: CPU bus module
Connector type: ML-II, 9-pin D-Sub, screwless plug-in
Description: Trajexia drive controller on the CJ series
Expected delivery:
Kifutott termék! Inquire please!
Nettó: 2 967.40 €

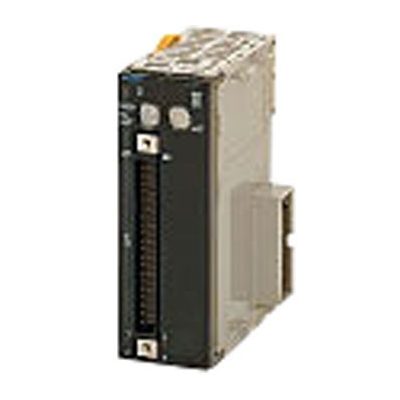

Modular PLC expansion module Omron CJ1W-NC113

Modular PLC expansion module Omron CJ1W-NC113

CJ1W-NC113
Modular PLC expansion module
Channel / axis: 1
Type: Position control module
Signal type: 24 V, open collector
Module classification: Special I / O module
Connector type: 1 x Fujitsu (40 points)
Description: 500 kp pulse outputs, zero inputs, limit switches, stop, interrupt
Expected delivery:
Inquire please!
Nettó: 794.84 €
Modular PLC expansion module Omron CJ1W-NC213

Modular PLC expansion module Omron CJ1W-NC213

CJ1W-NC213
Modular PLC expansion module
Channel / axis: 2
Type: Position control module
Signal type: 24 V, open collector
Module classification: Special I / O module
Connector type: 1 x Fujitsu (40 points)
Description: 500 kp pulse outputs, zero inputs, limit switches, stop, interrupt
Expected delivery:
Inquire please!
Nettó: 1 045.20 €
Modular PLC expansion module Omron CJ1W-NC271

Modular PLC expansion module Omron CJ1W-NC271

CJ1W-NC271
Modular PLC expansion module
Channel / axis: 2
Type: Position control module
Signal type: MECHATROLINK-II
Module classification: CPU bus module
Connector type: ML-II
Description: Position, speed and torque control, access to all drive parameters
Expected delivery:
Inquire please!
Nettó: 1 072.20 €
Modular PLC expansion module Omron CJ1W-NC281

Modular PLC expansion module Omron CJ1W-NC281

CJ1W-NC281
Modular PLC expansion module
Channel / axis: 2
Type: Position control module
Signal type: EtherCAT
Module classification: CPU bus module
Connector type: RJ45
Description: Position, speed and torque control, access to all drive parameters
Expected delivery:
Inquire please!
Nettó: 1 377.81 €
Modular PLC expansion module Omron CJ1W-NC413

Modular PLC expansion module Omron CJ1W-NC413

CJ1W-NC413
Modular PLC expansion module
Channel / axis: 4
Type: Position control module
Signal type: 24 V, open collector
Module classification: Special I / O module
Connector type: 2 x Fujitsu (40 points)
Description: 500 kp pulse outputs, zero inputs, limit switches, stop, interrupt
Expected delivery:
Inquire please!
Nettó: 1 377.81 €
Modular PLC expansion module Omron CJ1W-NC471

Modular PLC expansion module Omron CJ1W-NC471

CJ1W-NC471
Modular PLC expansion module
Channel / axis: 4
Type: Position control module
Signal type: MECHATROLINK-II
Module classification: CPU bus module
Connector type: ML-II
Description: Position, speed and torque control, access to all drive parameters
Expected delivery:
Inquire please!
Nettó: 1 393.22 €
Modular PLC expansion module Omron CJ1W-NC481

Modular PLC expansion module Omron CJ1W-NC481

CJ1W-NC481
Modular PLC expansion module
Channel / axis: 4
Type: Position control module
Signal type: EtherCAT
Module classification: CPU bus module
Connector type: RJ45
Description: Position, speed and torque control, access to all drive parameters
Expected delivery:
Inquire please!
Nettó: 1 860.81 €


Brochure

CJ2 Brochure with expansion module

Handbook

CJ1W-CT021 counter modul

CJ1W-CTL41-E 4 channel counter module

CJ1W-CTS21-E SSI device

CJ1W-DCM11-E DC motor controller module

CJ1W-MCH72 drive controller module

CJ1W-NC__3 positioning modul

CJ1W-NC_71 positioning modul

CJ1W-NC_81/_82 positioning modul
