Omron PLC Analog I / O and control units

Omron Analog I / O Module: Compared to a digital I / O module, analog modules do not works with simple bit communication but send/recive a values in voltage or current which transforms to a range. The input is usually served by analog sensors, which convert the above-mentioned voltage or analog ranges to a certain unit (temperature, distance). They are generally suitable for PT100, PT1000, RTD thermocouple input or laser distance measurement, but are suitable for operating almost all analog sensors and value display devices due to their wide voltage and current ranges.

Click HERE for the full product range and detailed product description

Our expansion modules are compatible with CJ2H, CJ2M, NJ1, NJ3 and NJ5 CPUs, the expansion modules for NX CPUs can be purchased in a separate menu!



31product

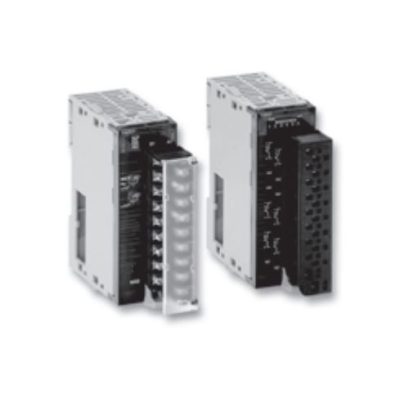

Modular PLC expansion module Omron CJ1W-AD041-V1

Modular PLC expansion module Omron CJ1W-AD041-V1

CJ1W-AD041-V1
Type: Analog input
Number of I / O points: 4
Range: 0 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/8,000
Accuracy: V: 0.2% I: 0.4%
Conversion time: 250 μs / dot
Connector type: M3
Description: Offset / gain adjustment, peak maintenance, moving average, alarm indications
Expected delivery:
Inquire please!
Nettó: 603.77 €
Modular PLC expansion module Omron CJ1W-AD041-V1 (SL)

Modular PLC expansion module Omron CJ1W-AD041-V1 (SL)

CJ1W-AD041-V1SL
Type: Analog input
Number of I / O points: 4
Range: 0 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/8,000
Accuracy: V: 0.2% I: 0.4%
Conversion time: 250 μs / dot
Connector type: Quick connector
Description: Offset / gain adjustment, peak maintenance, moving average, alarm indications
Expected delivery:
Inquire please!
Nettó: 603.77 €
Modular PLC expansion module Omron CJ1W-AD042

Modular PLC expansion module Omron CJ1W-AD042

CJ1W-AD042
Type: High speed analog input
Number of I / O points: 4
Range: 1 - 5 V, 0 - 10 V, –5 - 5 V, –10 - 10 V, 4 - 20 mA < br /> Resolution: 1/40 000
Accuracy: V: 0.2% I: 0.4%
Conversion time: 35 μs / 4 points
Connector type: M3
Description: Direct conversion (with special instructions from CJ2H)
Expected delivery:
Inquire please!
Nettó: 1 257.30 €
Modular PLC expansion module Omron CJ1W-AD04U

Modular PLC expansion module Omron CJ1W-AD04U

CJ1W-AD04U
Type: Universal analog input
Number of I / O points: 4
Range: 0 - 5 V 1 - 5 V 0 - 10 V 0 - 20 mA 4 - 20 mA K, J, T, L, R, S, B Pt100, Pt1000, JPt100
Resolution: V / I: 1/12 000 Thermocouple: 0.1 ° C RTD: 0.1 ° C
Accuracy: V: 0.3% I: 0.3% Thermocouple: 0.3% RTD: 0.3%
Conversion time: 250 ms / 4 points
Connector type: M3
Description: Universal inputs, zero / slope adjustment, adjustable alarms, scaling, sensor fault detection
Expected delivery:
Inquire please!
Nettó: 578.60 €
Modular PLC expansion module Omron CJ1W-AD04U (SL)

Modular PLC expansion module Omron CJ1W-AD04U (SL)

CJ1W-AD04USL
Type: Universal analog input
Number of I / O points: 4
Range: 0 - 5 V 1 - 5 V 0 - 10 V 0 - 20 mA 4 - 20 mA K, J, T, L, R, S, B Pt100, Pt1000, JPt100
Resolution: V / I: 1/12 000 Thermocouple: 0.1 ° C RTD: 0.1 ° C
Accuracy: V: 0.3% I: 0.3% Thermocouple: 0.3% RTD: 0.3%
Conversion time: 250 ms / 4 points
Connector type: Quick connect
Description: Universal inputs, zero / slope adjustment, adjustable alarms, scaling, sensor fault detection
Expected delivery:
Inquire please!
Nettó: 578.60 €
Modular PLC expansion module Omron CJ1W-AD081-V1

Modular PLC expansion module Omron CJ1W-AD081-V1

CJ1W-AD081-V1
Type: Analog input
Number of I / O points: 8
Range: 1 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/8,000
Accuracy: V: 0.2% I: 0.4%
Conversion time: 250 μs / dot
Connector type: M3
Description: Offset / gain adjustment, peak maintenance, moving average, alarm indications
Expected delivery:
Inquire please!
Nettó: 783.67 €
Modular PLC expansion module Omron CJ1W-AD081-V1 (SL)

Modular PLC expansion module Omron CJ1W-AD081-V1 (SL)

CJ1W-AD081-V1SL
Type: Analog input
Number of I / O points: 8
Range: 1 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/8,000
Accuracy: V: 0.2% I: 0.4%
Conversion time: 250 μs / dot
Connector type: Quick connector
Description: Offset / gain adjustment, peak maintenance, moving average, alarm indications
Expected delivery:
Inquire please!
Nettó: 783.67 €
Modular PLC expansion module Omron CJ1W-DA021

Modular PLC expansion module Omron CJ1W-DA021

CJ1W-DA021
Type: Analog output
Number of I / O points: 2
Range: 0 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/4 000
Accuracy: V: 0.3% I: 0.5%
Conversion time: 1 ms / point
Connector type: M3
Description: Offset / gain adjustment, output hold
Expected delivery:
Inquire please!
Nettó: 603.20 €
Modular PLC expansion module Omron CJ1W-DA021 (SL)

Modular PLC expansion module Omron CJ1W-DA021 (SL)

CJ1W-DA021SL
Type: Analog output
Number of I / O points: 2
Range: 0 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/4 000
Accuracy: V: 0.3% I: 0.5%
Conversion time: 1 ms / point
Connector type: Quick connector
Description: Offset / gain adjustment, output hold
Expected delivery:
Inquire please!
Nettó: 578.03 €
Modular PLC expansion module Omron CJ1W-DA041

Modular PLC expansion module Omron CJ1W-DA041

CJ1W-DA041
Type: Analog output
Number of I / O points: 4
Range: 1 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/4 000
Accuracy: V: 0.3% I: 0.5%
Conversion time: 1 ms / point
Connector type: M3
Description: Offset / gain adjustment, output hold
Expected delivery:
Inquire please!
Nettó: 746.20 €
Modular PLC expansion module Omron CJ1W-DA041 (SL)

Modular PLC expansion module Omron CJ1W-DA041 (SL)

CJ1W-DA041SL
Type: Analog output
Number of I / O points: 4
Range: 1 - 5 V, 0 - 10 V, –10 - 10 V, 1 - 5 V, 4 - 20 mA
Resolution: 1/4 000
Accuracy: V: 0.3% I: 0.5%
Conversion time: 1 ms / point
Connector type: Quick connector
Description: Offset / gain adjustment, output hold
Expected delivery:
Inquire please!
Nettó: 746.20 €
Modular PLC expansion module Omron CJ1W-DA042V

Modular PLC expansion module Omron CJ1W-DA042V

CJ1W-DA042V
Type: High speed analog output
Number of I / O points: 4
Range: 1 - 5 V, 0 - 10 V, –10 - 10 V
Resolution: 1/40 000
Accuracy: 0.3%
Conversion time: 35 μs / 4 points
Connector type: M3
Description: Direct conversion (with special instruction from CJ2H)
Expected delivery:
Inquire please!
Nettó: 1 258.45 €


Brochure:

CJ2 Brochure with expansion modules

Handbook:

CJ1W-AD/DA/MAD Analog I/O modul

CJ1W-PTS/PDC/PH41U Thermocouple input module

CJ1W-TC Thermocouple output module
