Omron NX PLC Position control modules

 Omron NX PLC Motion and Position Control Module: These modules are specifically designed for the combined use of servo and stepper motors and rotary encoders, for the most accurate motion control possible. Multi-axis synchronous drives can be performed with the help of positioning modules. The pulse output module is suitable for controlling controllers using a pulse-dir signal (e.g. servo and stepper motors) and the pulse input module is suitable for receiving the signal of sensors generating a pulse signal (e.g. encoder).

Click HERE for the full product range and detailed product description

8product 18

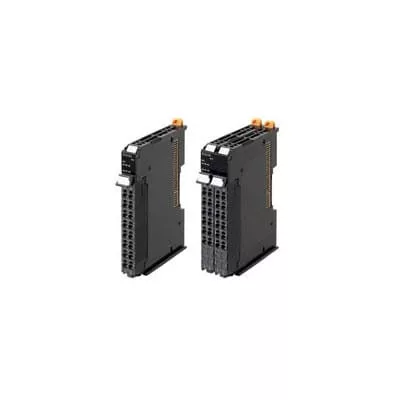

Omron NX-EC0122

Omron NX-EC0122

NX-EC0122

I / O Type: Omron NX PLC I / O
Module Type: Encoder Input
Connector Type: Push-in

< p> Channel / axis: 1 incremental encoder NPN inputSignal type: Phase A and B: single phase 500 kHz (phase difference pulse Input x4: 125 kHz), phase Z: 125 kHz

Expected delivery:
Inquire please!
Nettó: 332.91 €
Omron NX-EC0142

Omron NX-EC0142

NX-EC0142

I / O Type: Omron NX PLC I / O
Module Type: Encoder Input, 24mm Wide
Connector Type: Push-in

Channel / axis: 1 incremental line encoder PNP input
Signal type: Phase A and B: single phase 4 MHz (phase difference pulse Input x4: 1 MHz), phase Z: 1 MHz
Expected delivery:
Inquire please!
Nettó: 517.59 €
Omron NX-EC0222

Omron NX-EC0222

NX-EC0222

I / O Type: Omron NX PLC I / O
Module Type: Encoder Input
Connector Type: Push-in


Channel / Axis: 2 incremental encoder PNP inputs
Signal type: Phase A and B: single phase 500 kHz (phase difference pulse Input x4: 125 kHz), phase Z: 125 kHz
Expected delivery:
Inquire please!
Nettó: 371.52 €
Omron NX-ECS112

Omron NX-ECS112

NX-ECS112

I / O Type: Omron NX PLC I / O
Module Type: SSI Encoder Input
Connector Type: Push-in


Channel / Axis : 1 SSI encoder input
Signal type: EIA standard RS-422-A, maximum data length 32 bits, maximum input frequency 2000 kHz
Expected delivery:
Inquire please!
Nettó: 470.34 €
Omron NX-ECS212

Omron NX-ECS212

NX-ECS212

I / O Type: Omron NX PLC I / O
Module Type: Encoder Input
Connector Type: Push-in


Channel / Axis: 2 incremental encoders NPN inputs
Signal type: Phase A and B: single phase 500 kHz (phase difference pulse Input x4: 125 kHz), phase Z: 125 kHz
Expected delivery:
Inquire please!
Nettó: 555.39 €
Omron NX-PG0122

Omron NX-PG0122

NX-PG0122

I / O Type: Omron NX PLC I / O
Module Type: Pulse Output
Connector Type: Push-in


Channel / Axis: 1 pulse output PNP
Signal type: Forward / reverse direction pulses or pulse + DIR signals
Expected delivery:
Inquire please!
Nettó: 392.85 €
Omron NX-PG0242-5

Omron NX-PG0242-5

NX-PG0242-5

I / O Type: Omron NX PLC I / O
Module Type: Pulse Output MIL Connector
Connector Type: Push-in

Channel / axis: 2 pulses line driver PNP output
Signal type: Line driver RS-422, with voltage pulses, maximum frequency 4000 kHz
Expected delivery:
Inquire please!
Nettó: 794.34 €

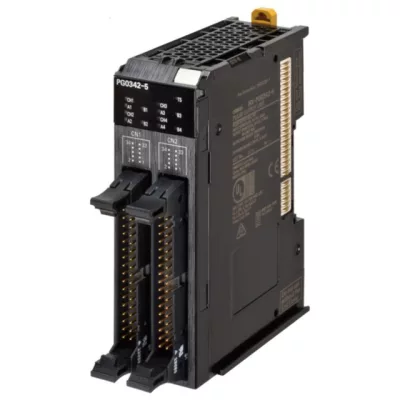

Omron NX-PG0342-5

Omron NX-PG0342-5

NX-PG0342-5

I / O Type: Omron NX PLC I / O
Module type: Pulse output, 24mm wide
Connector type: 2 MIL connectors

Channel / axis: 4 pulses line driver PNP outputSignal type: Line driver RS-422, with voltage pulses, maximum frequency 4000 kHz

Expected delivery:
Inquire please!
Nettó: 1 122.39 €
